FACTS
A230G, the name says it all
Aluminum 230 grams light incl. stopper
Stability through wide arrangement of mounting screws
Optimum power transmission on wide skis
Safety thanks to adjustable Z-values
Adjustable Z values for front and torsion release
Light and stable thanks to high-strength aluminium
Made of high-strength aircraft aluminum, CNC milled directly from solid
A climbing aid with optimal ergonomic design
Four-stage climbing aid for comfortable walking on any terrain
Selun A230G
The Selun A230G is made of high-strength aluminium. The alloy, developed for aircraft construction, withstands extreme cold and bending loads. The ingenious design, with a focus on reducing weight while even improving stability and performance, results in the lightest pin binding with adjustable Z-values for front and torsion release. Wide hole spacing for mounting screws optimally transfers forces to wide skis. The stable lightweight construction offers maximum performance for a wide range of users. Through endurance tests in the laboratory and countless tests in the moun tains, the Selun A230G has matured into a first-class product that will give the user many years of pleasure.
An easy start
Adjustable stops for any shoe brand, which help to hit pin tips effortlessly when getting in.
Contraction spring in the binding front
At the heart of the binding front is the ground breaking new development that makes the difference: the contraction spring between the toggle levers simultaneously functions a spring element and a pivot joint. The simplicity of this design convinces through the reduction in the large number of compo nents and saves weight like no other.
Four-stage climbing aid
The Selun A230G offers four options for different terrain steepness.
Level 1 directly on the stopper tread plate, which is very low and close to the ski, thus allowing a very long step in flat terrain.
Level 3 pivots for steep passages.
Level 2 is the universal climbing aid used by experienced tourers in steep and flat terrain. The moderate height allows a relatively long step and still provides support in steeper terrain.
Level 4 pivots for very steep passages.
Stopper tread plate with power transmission
The cams on the tread plates transfer forces as widely as possible directly from the sole of the ski boot to the ski, massively increasing skiing performance.
Stopper with optimal parking position
The stopper is pulled together in the parking position high above the ski so that movement is not hindered by interfering edges when walking and skiing downhill.
Z-value setting for torsion release
The Z-value is easily adjustable from 5 = 50kg body weight to 13 = 130kg body weight.

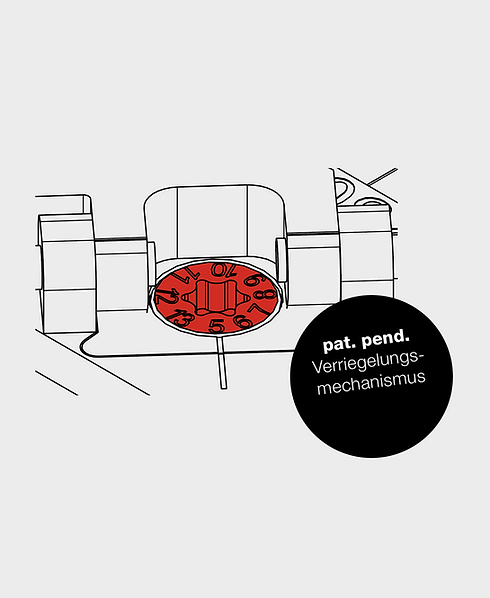

Z-value setting for front release
The locking mechanism in the heel binding, which is impressive in its simplicity, allows for a compact and very lightweight design. With the arrangement of the spring in the centre of the pivot point, a ground-breaking innovation has been achieved. The Z-value is easily adjustable from 5 = 50kg body weight to 13 = 130kg body weight.
